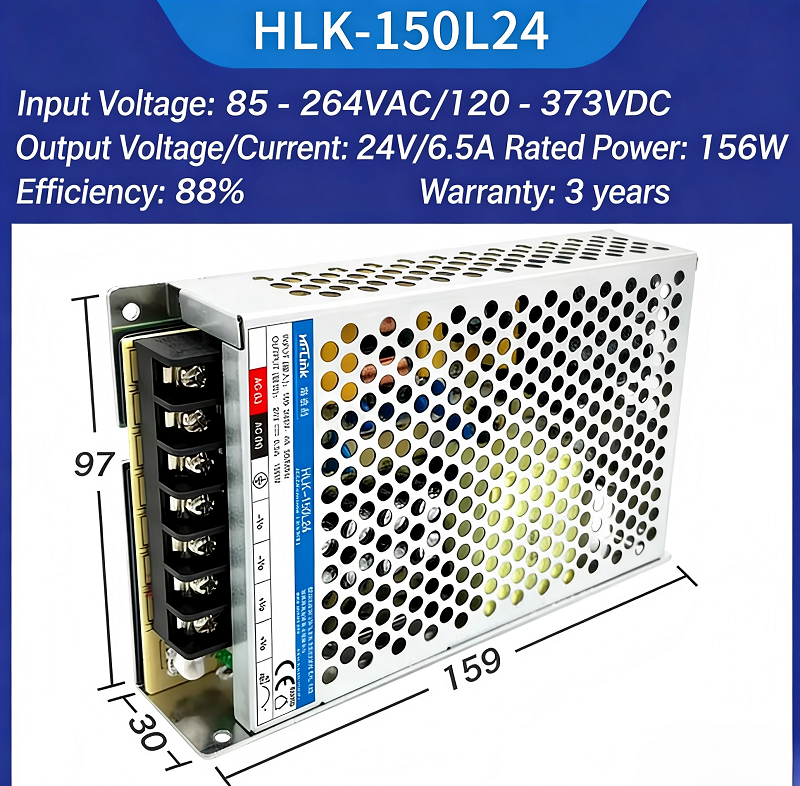

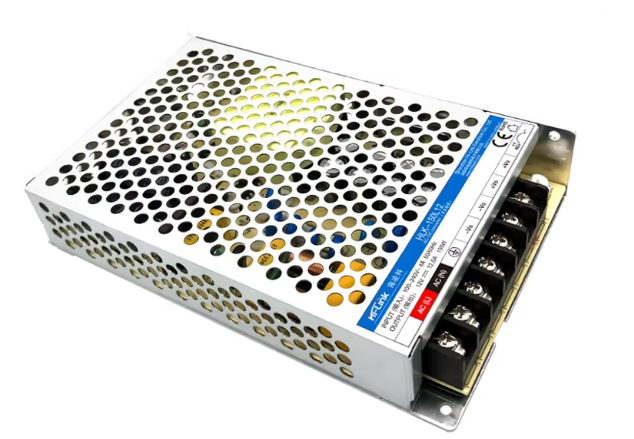

150W switching power supply 220V to 12V/15V/24V/36V/48V full-power monitoring LED light box transformer--EngrWorld

150W is a metal case power supply provided by Hailingke for customers. This series of power supplies has advantages such as a globally universal input voltage range, dual AC/DC use, high cost performance, low power consumption, high efficiency, high reliability, and safe isolation. The product is safe and reliable with good EMC performance. Its EMC and safety specifications meet international standards such as IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943. It is widely used in fields such as industrial control, LED, street lamp control, electric power, security, communication, and smart home.

Product Features

Input voltage range: 85 - 264VAC/120 - 373VDC
Low power consumption, environmentally friendly, no-load loss < 0.5W
Operating temperature range: -30℃ to +70℃
4000VAC high isolation voltage
High efficiency and high power density
Low ripple and noise
Output short circuit, overcurrent, and overvoltage protection
Compliant with IEC/EN/UL62368, EN60335, and GB4943 certification standards
Can withstand 300VAC input surge voltage for 5s
Overvoltage category Ⅲ (compliant with EN61558)
Suitable for 5000m altitude applications
1-year quality warranty period

	Type	Description
	Product type	Industry specific power supply
	Manufacturer	Shenzhen Hi-Link
	Brand	Hi-Link
	Universal package	Enclosed
	Maximum input voltage	264Vac
	Maximum output current	6.5A
	Minimum input voltage	85Vac
	Number of output voltage groups	Single Output
	Output mode	Regulated Output
	Total output power	156W
	Type	AC-DC Switching Power Supply Module
	Installation mode	Rail/Panel Mount
	Operating temperature	-30℃ ~ +70℃
	Length * width * height	159 × 97 × 30 mm
	Packing method	Box Packaging
