Specifications
User Reviews
Commodity Description
Product Descrption

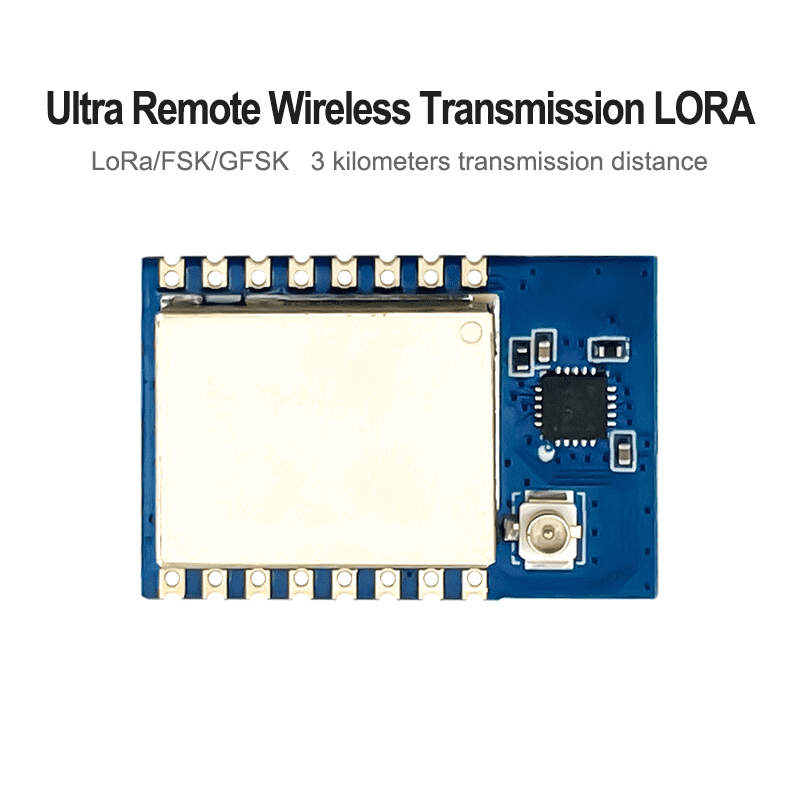

HLK-L06 uses chips as wireless communication to achieve data transmission from serial port to wireless radio frequency. It has the characteristics of long transmission distance, low power consumption, strong anti-interference ability, and convenient use
Product Feature
Support data conversion from serial port to RF
The main frequency supports 32MHz
The main controller uses PY32F003 as the main controller
Using LLCC68 for communication, with a communication frequency of 433Mhz and a long transmission distance
Working voltage 3.0-3.6V, typical value 3.3V
Compatible with B36 module packaging and external antenna
Supports configuration of transmission rate and power for at commands
Maximum transmission power 22dBm
Supports one-to-one and one to many communication
Technical Specifications
Module
Mode
HLK-L06
Package
Direct insertion/SMT
Antenna parameters
frequency range
433.040 - 434.790Mhz
Transmission power
maximum 22dBm
Programmable adjustment
Receiving sensitivity
-129dBm
Antenna form
External: I-PEX connector
Hardware parameters
hardware interface
UART
working voltage
3.3V(3.0-3.6v)
Communication rate
Modulation method: 1.11-18.23Kbps
Working current
Continuous transmission:~120mA, maximum transmission power
