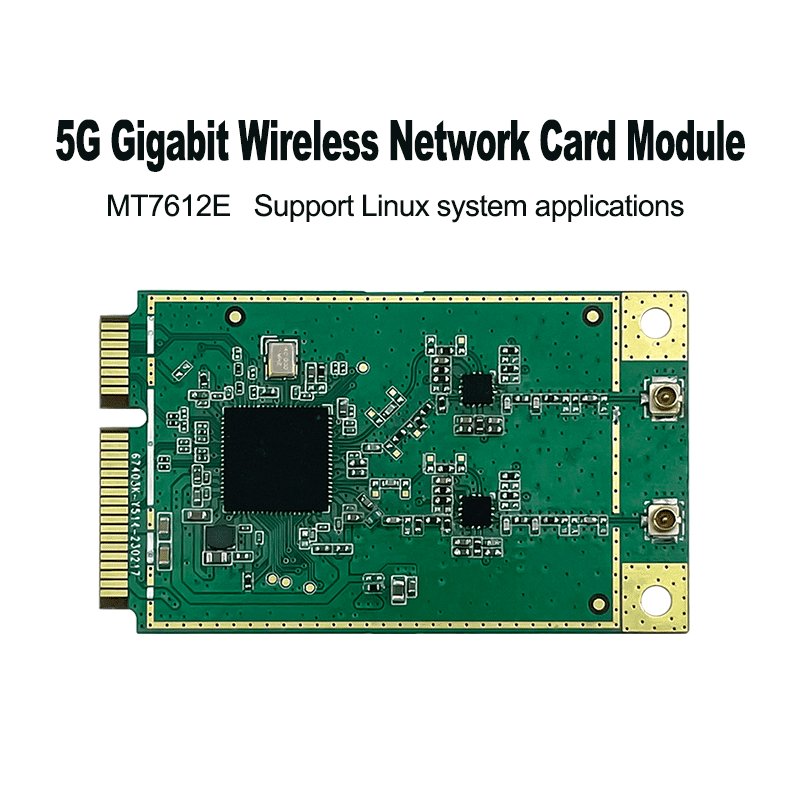

HLK-7612E use a highly integrated single chip which has built in a 2x2 dual-band wireless LAN radio. It supports IEEE802. 11ac draft standard and provides the highest PHY rate up to 867Mbps, offering feature-rich wireless connectivity and reliable throughput from an extended distance. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. MT7612E integrates PA/LNA such that the number of the external components is reduced to minimum. Intelligent MAC design deploys a highefficient DMA engine and hardware data processing accelerators which offloads the host processor. The MT7612E supports the 802.11i security standard and implements hardware acceleration for TKIP, CCMP and WAPI. The device also supports 802.11e QoS for video, voice, and multimedia applications.

7612E-2

Block Diagram

Specifications

Specifications
Chipset	MTK MT7612E External PA/LNA/SWITCH: SKY85712-21
Interface	Normal Gold Finger miniPCIE 5.8G 2T2R 867Mbps 11ac 21dBm@A mode
DC Power	1x DC MINIPCIE Connector: 3.3V@1A 5V@1A
Power Consumption	3 Watt (Max)
Software	OpenWRT or MTK Linux SDK Driver and Tool Chain
Certification	Support CE & FCC, RoHS Compliant
Environmental	Temperature: Operating: 0ºC -55 ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max . 90%

RF Parameter

5G ITEM	RATE	Value
A Mode Pwr (dBm)	54M	21dBm
N HT20 Pwr (dBm)	MCS7：65M	20dBm
N HT40 Pwr (dBm)	MCS7：135M	19dBm
AC VHT80 Pwr (dBm)	MCS9：390M	18dBm
A Mode EVM (dB)	54M	三-26dB
N HT20 EVM (dB)	MCS7：65M	三-28dB
N HT40 EVM (dB)	MCS7：135M	三-28dB
AC VHT80 EVM (dB)	MCS9：390M	三-32dB
FeqErr (ppm)	Test with TX POWER test	± 10ppm
A RX sensitivity (dB)	54M	-70dBm
N HT20 RX sensitivity (dB)	MCS7：65M	-68dBm
N HT40 RX sensitivity (dB)	MCS7：135M	-65dBm
AC VHT80 RX sensitivity (dB)	MCS9：390M	-55dBm

	类型	描述
	产品类型	以太网模块
	制造商	Shenzhen Hi-Link
	厂牌	Hi-Link
	通用封装	金手指 PCIe 封装
	天线形式	外置天线（双频 2.4G/5.8G）
	芯片平台	MT7612E
	接口	金手指 PCIe 接口
	工作电流	3V@1A, 5V@1A（供电电流需求）
	工作电压	3V, 5V
	安装方式	金手指插槽直插 / PCIe 板对板安装
	工作温度	0℃ ~ 55℃
	长宽高	51x30x3mm
