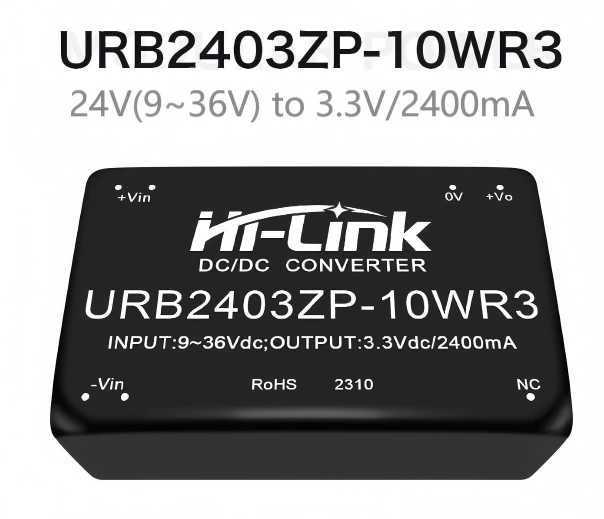

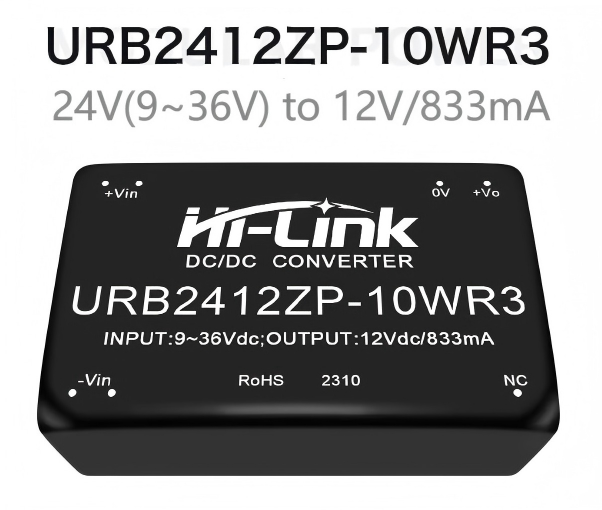

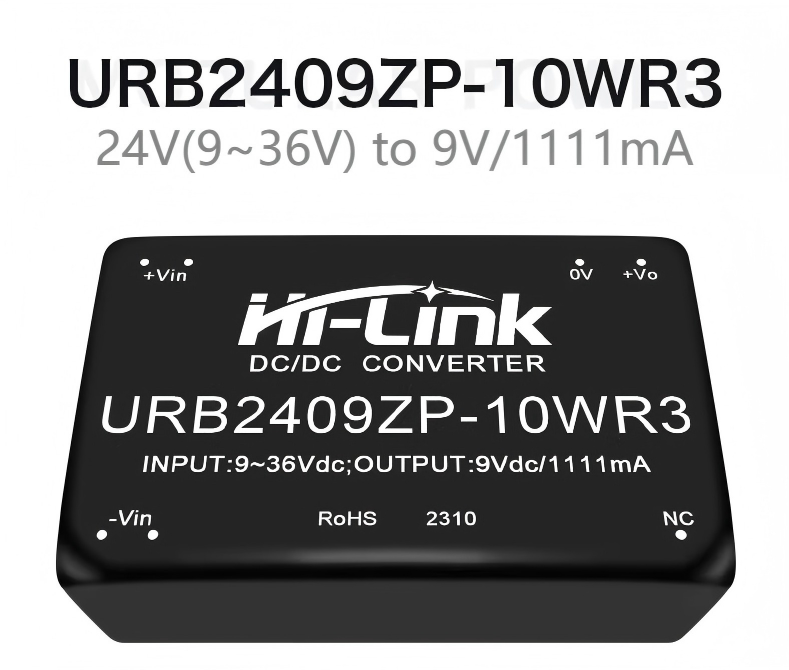

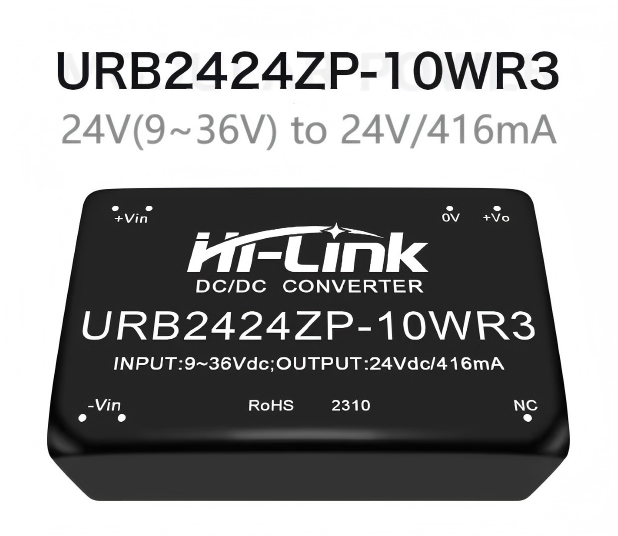

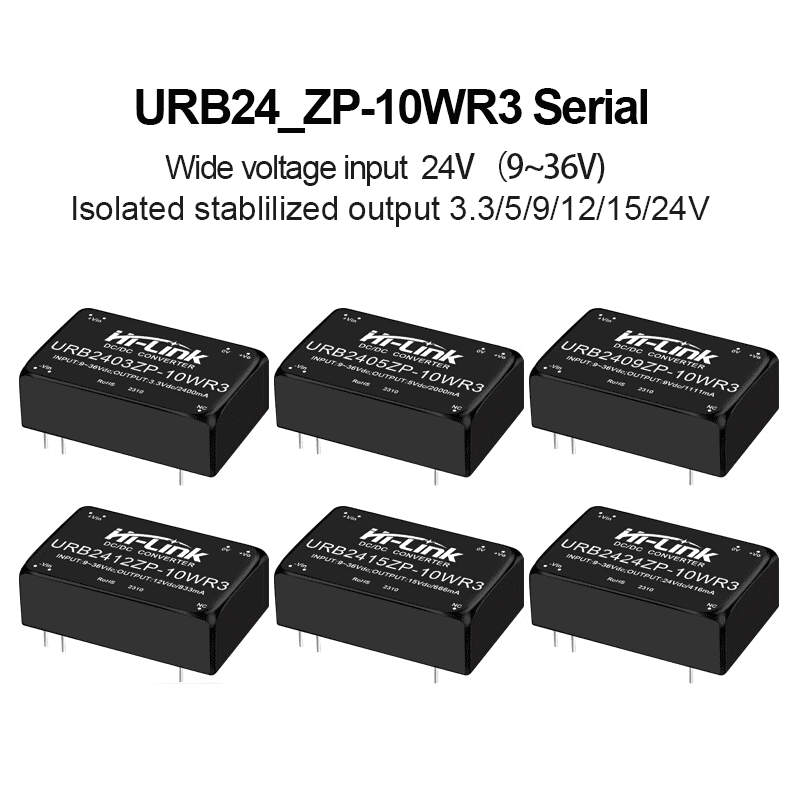

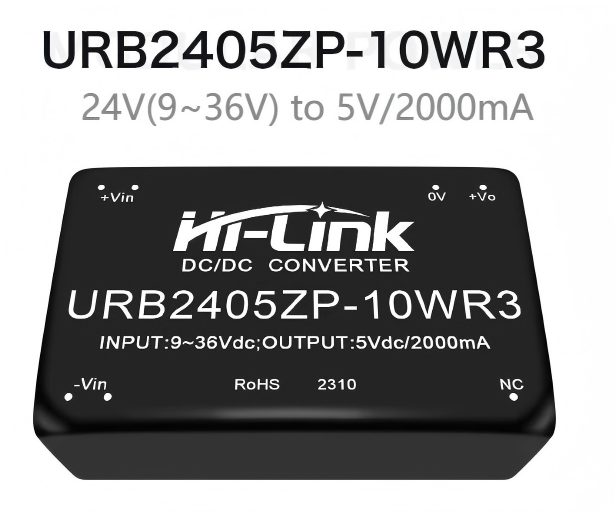

URB24_ZP-10WR3 URB2403ZP-10WR3 --EngrWorld

Project	Operating conditions	Min.	Typ.	Max.	Unit
Insulation voltage	Input-output, test time is 1 minute, leakage current is less than 1mA	1500	--	--	VDC
Insulation resistance	Input-output，insulation voltage : 500VDC	1000	--	--	MΩ
Isolation Capacitor	Input-output，100KHz/0.1V	--	1000	--	pF
Operating temperature	Reference temperature derating curve	-40	--	+85	℃
Storage temperature		-40	--	+125
Maximum temperature of the shell during operation		--	--	+100
Storage humidity	No condensation	5	--	95	%RH
Pin soldering temperature	The solder joint is 1.5mm away from the shell, 10 seconds	--	--	+300	℃
Switching frequency	PWM mode	--	250	--	KHz
Viberation		10-55Hz,10G,30Min.alongX,YandZ
Shell material		Aluminum shell
Minimum time between failures	MIL-HDBK-217F@25℃	--	2X105	--	Hrs

Input Characteristics

Item	Working conditions		Min.	Typ.	Max.	Unit
Input current (full load/ no load)	24VDC Input Series	3.3V	-	402/1	413/2	mA
	24VDC Input Series	others	-	490/1	502/2
	48VDC Input Series	3.3V	-	201/0.5	207/1
	48VDC Input Series	others	-	245/0.5	251/1
	110VDC Input Series	3.3V	-	87/0.3	90/0.5
	110VDC Input Series	others	-	100/0.3	109/0.5
Reflected ripple	24VDC nominal input series, nominal input voltage		--	40	--
	48VDC Input Series		--	30	--
	110VDC Input Series		--	20	--
Impulse voltage （Isec.max）	24VDC Input Series		-0.7	--	50	VDC
	48VDC Input Series		-0.7	--	100
	110VDC Input Series		-0.7	--	200
Starting voltage	24VDC nominal input series, nominal input voltage		-	-	9
	48VDC nominal input series, nominal input voltage		-	-	18
	110VDC nominal input series, nominal input voltage		-	-	40
Input undervoltage protection	24VDC nominal input series, nominal input voltage		5.5	6.5	-
	48VDC nominal input series, nominal input voltage		12	15.5	-
	110VDC nominal input series, nominal input voltage		32	36	-
Startup time	Nominal input voltage and constant resistance load		-	1	-	mS
Input filter type			PI type
Hot plugged			Non-support
Remote control terminal（Ctrl）*	Module turned on		Ctrl floating or connected to TTL high level （3.5-12VDC）
	Module turned off		Ctrl is connected to GND or low level （0-1.2VDC）
	Input current at shutdown		-	0	1	mA
Note: *Ctrl control pin voltage is relative to input pin GND

Output Characteristics

Project name	Working and testing condition	+V01			-V02
Project name	Working and testing condition	Min.	Typ.	Max.	Min.	Typ.	Max.
Output load	load percentage	0%	-	100%	0%	-	100%
Output Voltage Accuracy		-	±1.0%	±2.0%	-	±2.0%	±3.0%
Linear adjustment rate	input voltage range	-	±0.2%	±0.5%	-	±1.5%	±2.0%
Load adjustment rate	20%~100% rate load, balanced	--	±0.5%	±1.0%	-	±4.0%	±5.0%
Ripple & Noise	Pure resistive load, 20HMz bandwidth, peak-to-peak	--	50mVp-p	80mVp-p	-	50mVp-p	80mVp-p
Startup delay time		-	1ms	-	-	1ms	-
Output voltage regulation	Input voltage range	-	No adjustment end	-	-	No adjustment endNo adjustment end	-
Dynamic response step deviation	25% nominal load step	-	±3.0%	±5.0%	-	±3.0%	±5.0%
Dynamic response recovery time	25% nominal load step	-	300μs	500μs	-	300μs	500μs
Output overvoltage protection	Full voltage range input	110%Vo	-	160%Vo
Output overcurrent protection	Full voltage range input	110%Io	150%Io	200%Io
Output short circuit protection	Full voltage range input	Sustainable, self-healing
Note： ① For product models with output voltages of ±5VDC and ±9VDC, under 0%-5% load conditions, the maximum output voltage accuracy is ±5%; ②When tested under the working conditions of 0%-5% load, the index of the load adjustment rate is ±5%; ③0%-5% load ripple & noise less than or equal to 5% Vo. Ripple and noise test method Twisted pair test method, you can add capacitive load at the output to reduce light load ripple.

Note:

1、The above is only a list of typical products. If you need products beyond the list, please contact our sales. 2、The maximum capacitive load indicates the maximum capacitive load that + VO or - vo can be connected to,If the value is exceeded, the product will not start normally..

主图-PIN DIAGRAM 拷贝

Typical Application Circuits

Notes：More details please feel free to contact hi-link team.

	类型	描述
	产品类型	DC-DC模块
	制造商	Shenzhen Hi-Link
	厂牌	Hi-Link
	封装/性能	DIP package
	功能类型	DC-DC Isolated Power Module
	转换效率	80%~91%
	工作电压（Vin)	24VDC
	输出电压精度	±1.0%~±2.0%
	输出功率	10W
	静态电流（lq)	1mA
	开关频率	250kHz
	纹波噪声	50~80mVp-p
	工作温度	-40℃ ~ +85℃
