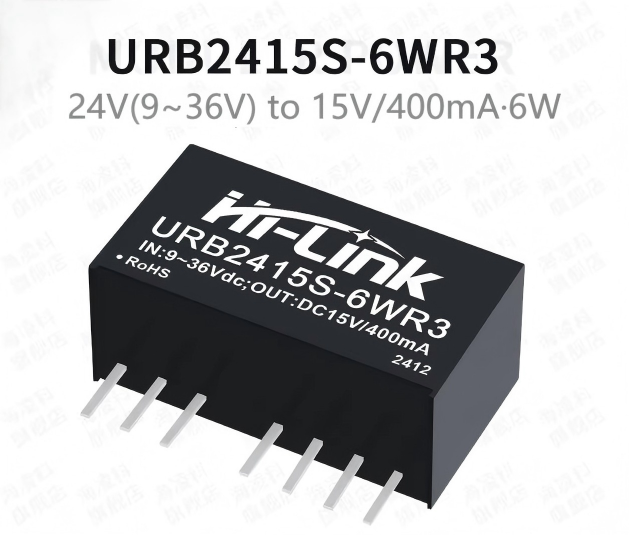

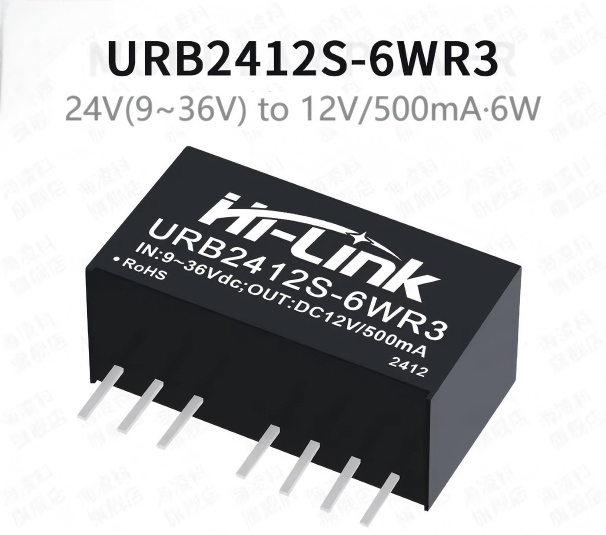

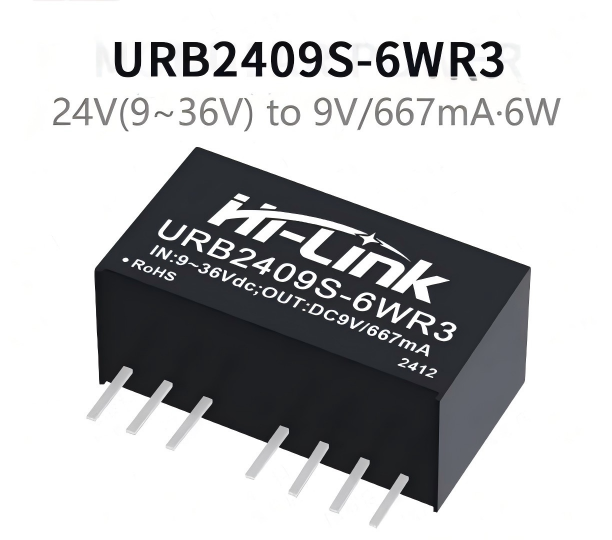

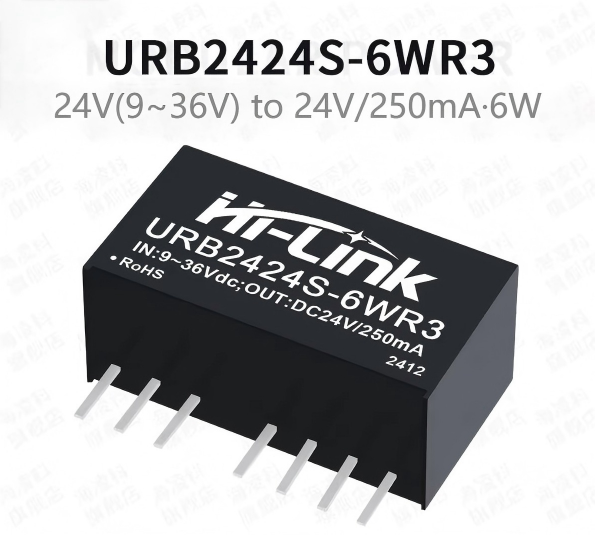

URB2405S-6WR3 URB2424S/03S/09S/12S/15S-6WR3 24V to 3.3V/9V/12V/15V/24V 5DC DC isolated stablized voltage power supply module--EngrWorld

Shopping guide

Ladder price

Qty.	Unit price	Total price
1+	$2.20	$2.20

Total inventory

Out of stock

Purchase quantity

MOQ:1 Increment:1

Total price：

Add to wish list

Share link

Service declaration

SHIPPING WAYS

Supports seven days of returns without reason

If the delivery is lost, return is supported

If the delivery is damaged, return is supported

Free exchange within 90 days

Security and privacy

Secure Payment: We will not share your personal information with any third party without your consent.

Secure Personal data: We protect your privacy and ensure that your personal data is safe and secure.

Payment security

With a popular payment partner, your personal information is safe.

Mailbox : berin@hlktech.com
address : RM 3 UNIT P 1/F KAISER ESTATE PHASE 3 NOS 9-11 HOK YUEN STREET HUNGHOM KL

Project name	Qualification	Unit	Notes
Working enviroment temperature	-40—+85	℃
Storage temperture	-40—+125 ℃	℃
Relative humidity	5—95	%
Heat dissipation mode	natural cooling
Atmospheric pressure	80—106 Kpa	Kpa
Ripple & Noise	50/130(max)	Mvp-p

Item	Working conditions		Min.	Typ.	Max.	Unit
Input voltage range(fully loaded/unloaded）	24VDC Input Series	3.3V output	-	238/5	245/12	mA
		5V output	-	305/5	313/12
		others	-	305/5	313/12
	48VDC Input Series	3.3V output	-	119/3	123/6
		5V output	-	152/3	162/6
		others		152/3	162/6
Reflected Ripple Current	-		--	50	--	mA
Impulse voltage （Isec.max)	12VDC Input Series		-0.7	--	50	VDC
Impulse voltage （Isec.max)	24VDC Input Series		-0.7	--	100
Start voltage	12VDC nominal input series, nominal input voltage		-	-	9
Start voltage	24VDC nominal input series, nominal input voltage		-	-	18
Input undervoltage protection	12VDC nominal input series, nominal input voltage		5.5	7.0	-
Input undervoltage protection	24VDC nominal input series, nominal input voltage		13	16.0	-
Input filter type			Capacitance filter type
Hot plugged			Non-support

Project name	Working and testing condition		Min.	Typ.	Max.	Unit
Output voltage accuracy	5%~100% no-load, input voltage range	3.3V/5V output	--	±3.0	±5.0	%
Output voltage accuracy	5%~100% no-load, input voltage range	others	--	±1.0	±2.0	%
Line Regulation	Full load, input voltage changes from low voltage to high voltage		--	±0.5	±1.0	%
Load Regulation	5%~100% load		--	±0.5	±1.5	%
Transient Recovery Time	25% load step change		--	±5	±8	mS
Transient response bias	25% load step change		--	±3	±5	%
Ripple&Noise	Pure resistive load, 20MHz bandwidth, peak to peak value		--	50	130	mVp-p
Temperature drift coefficient	full load		--	±0.02	±0.03	%/°C
Short Circuit Protection			Sustainable, self-healing
Note:The testing method for ripple and noise is the twisted pair testing method.

Component No.	Function	Recommended value
FMSE	Slow blowing fuse, selected according to the actual input current of the customer
CY1 safety capacitor	1nF/250Vac
