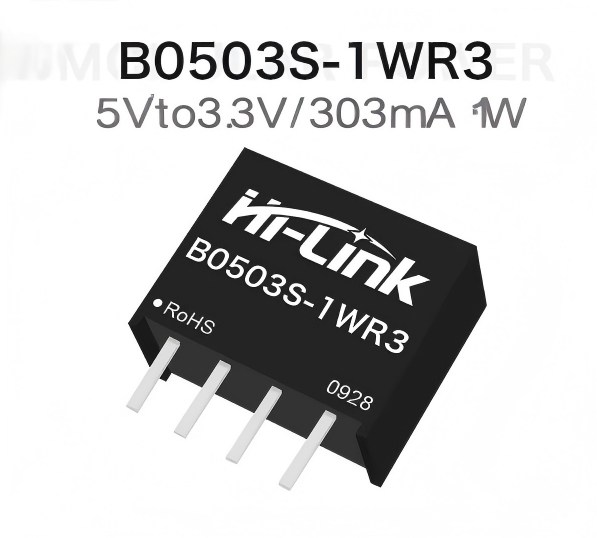

B0503S-1WR3 B0503S-1WR3 --EngrWorld

B_S-1WR3 series --- is a small-volume, high-efficiency, micro-power, fixed-voltage, input-isolated, non-regulated, single-output DC/DC module power supply provided by Hailingke for customers; this series of products is specially designed for applications in on-board power supply systems that need to generate a voltage isolated from the input power supply. This product is suitable for:

The input power supply voltage is relatively stable (voltage variation range ±10% Vin);
Isolation is required between input and output (isolation voltage ≤ 1500VDC);
The requirement for output voltage stability is not high;
Typical applications: pure digital circuit occasions, general low-frequency analog circuit occasions, relay drive circuits, data exchange circuit occasions, etc.

	Type	Description
	Product type	DC-DC module
	Manufacturer	Shenzhen Hi-Link
	Brand	Hi-Link
	Package/Specifications	SIP Package, 1W DC-DC Isolated Module
	Function type	DC-DC Isolated Power Module
	Conversion efficiency	Typ. 81%, Min. 78% (Full Load)
	Operation voltage (Vin)	3.3VDC
	Output voltage (Vout)	5VDC
	Output voltage accuracy	±15%
	Output power	1W
	Output current (max)	303mA
	Static current (lq)	Typ. 8mA
	Switching frequency	Typ. 100kHz
	Ripple noise	Typ. 30mVp-p, Max. 80mVp-p
	Max capacitive load	2400μF
	Operating temperature	-40℃ ~ +85℃
	Size	11.6×6.0×10.16mm
